Measuring Equipment
Measuring Equipment
BU-KYUNG strives to minimize product defects by using 3D measurement equipment.
-

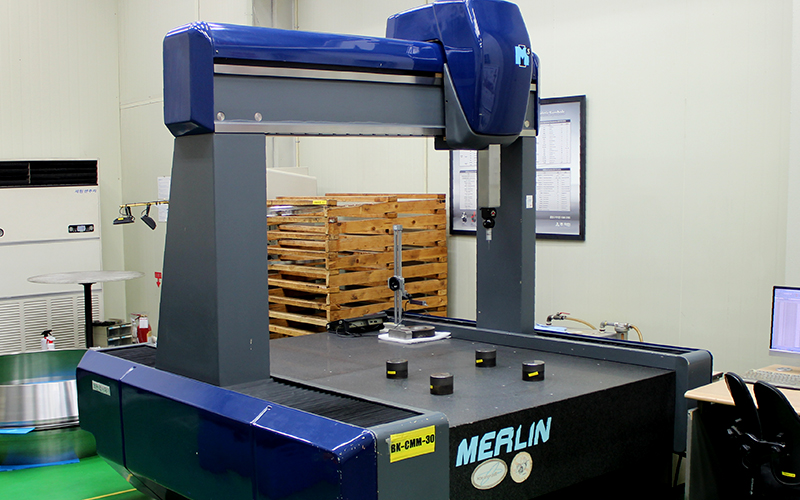

CMM(MERLIN)
-

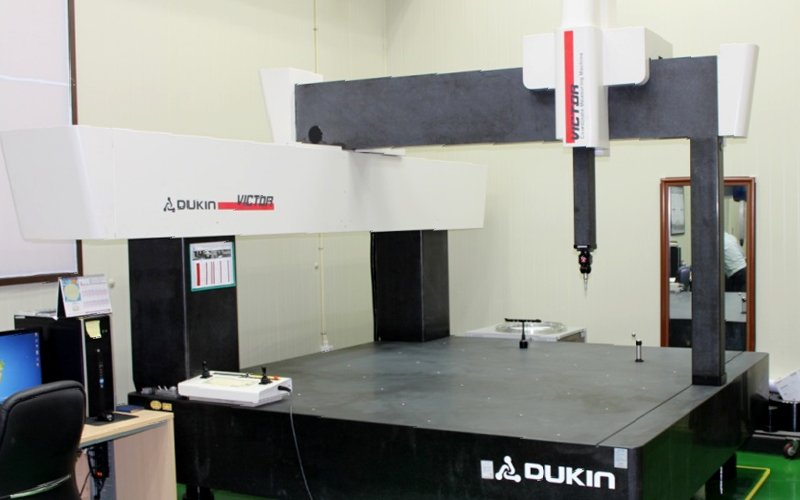

CMM(DUKIN)
-

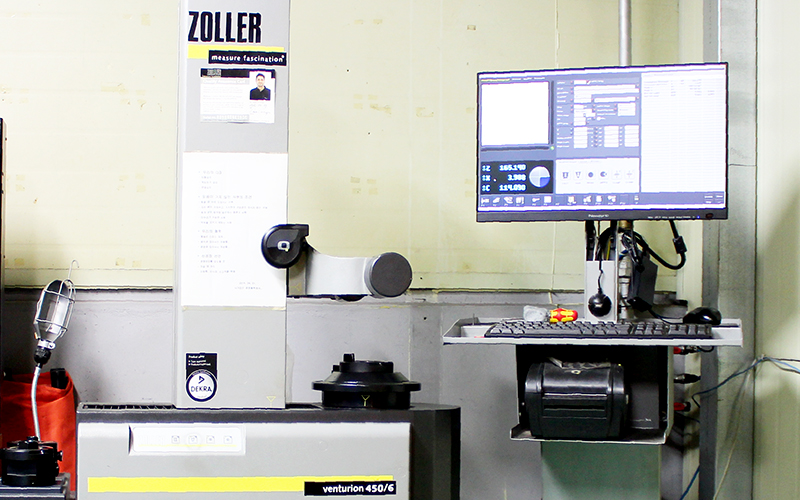

Tool Presetting Machine
| Nomenclature | Specification | Q'ty | Maker |
|---|---|---|---|
| CMM | 1400 × 1400 × 1000 | 1 | MERLIN |
| 1800 × 2400 × 1000 | 2 | DUKIN (VICTOR) |

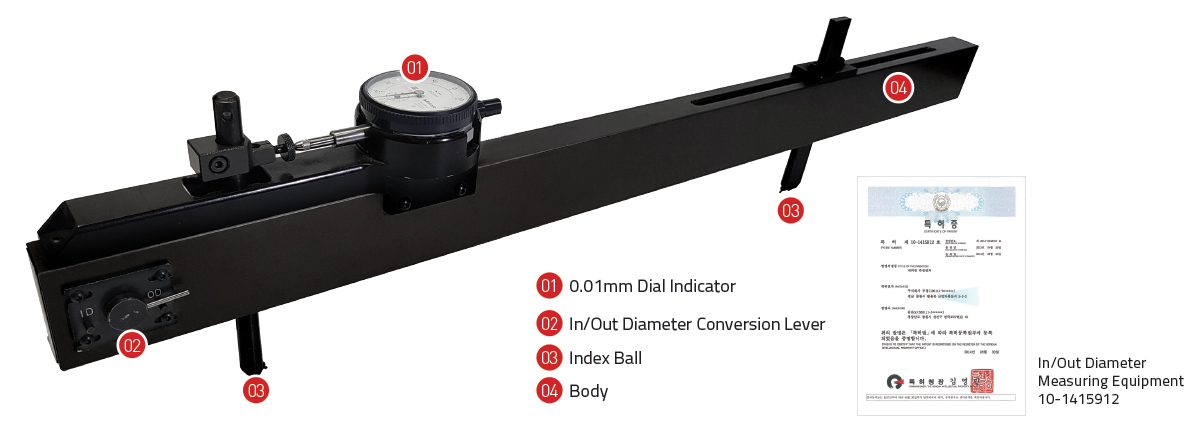

In / Out Diameter Measuring Equipment
FUNCTION
- A device that can measure ID and OD of turned parts
- Both ID and OD can be measured with a single measuring device;
INSTRUCTIONS
- ID and OD of the workpiece are measured after setting the desired measurement value in the master setting machine;
STRONG POINT
- Measured values can immediately be checked without unloading the workpiece from the processing equipment;
- Time is saved by comparing the measured value and drawing value, allowing immediate machining of the difference;
- Handling is easy to thanks to light weight good grip without inconvenience and discomfort;
- There is no error from repeated measuring or varied inspectors; measuring range is wider than existing measuring instruments;
- Price is affordable and parts supply is easy
SPECIFICATION

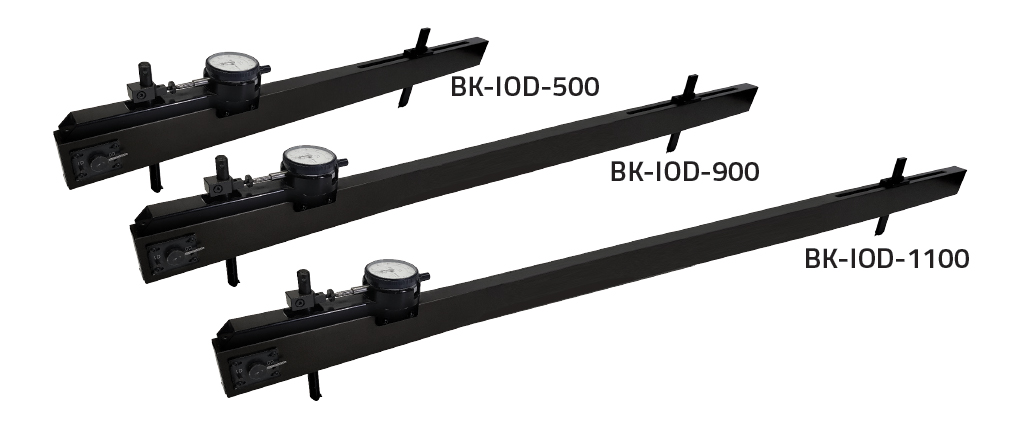

| MODEL NO. | RANGE(mm) |
|---|---|
| BK-IOD-300 | 200~300 |
| BK-IOD-500 | 300~500 |
| BK-IOD-700 | 500~700 |
| BK-IOD-900 | 700~900 |
| BK-IOD-1100 | 900~1100 |
| BK-IOD-1300 | 1100~1300 |
| BK-IOD-XXXX | Mim. 1300 |
